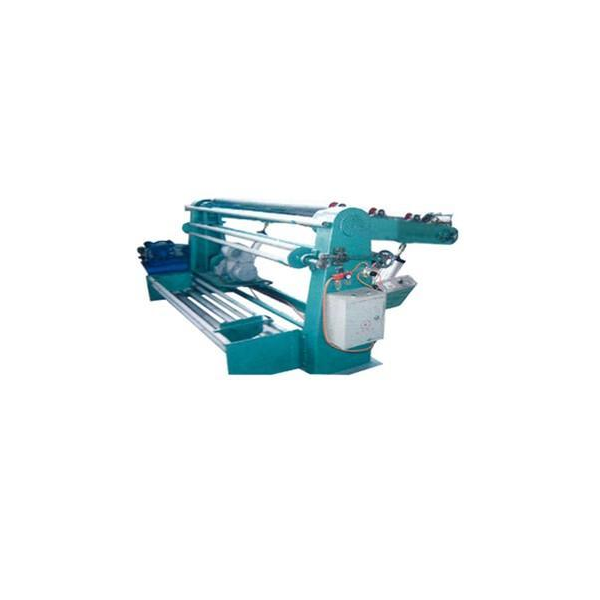

Textile Non- Woven Machines- Unwinding:
When the spreading roller passes through the spreading roller in the transmission process, the protruding part of the expanding roller in an arc is pressed against the lower end of the cloth, so that the two ends of the cloth have a tendency of sliding towards the two ends of the expanding roller, so as to realize the spreading of the expanding roller into the spreading of the cloth, so that the cloth is not easy to appear fold; At the same time, the fabric goes through the tensioning roller in the transmission, so that the fabric after the expanding roller can be re-expanded into a plane, and finally realize the unwinding operation through the unwinding roller set.
Specifications
- Working width :1800mm~ can be increased or decreased according to customer requirements.
- Cloth inspection speed :0~60M/min
- Mechanical dimensions :1850*2500*2100mm
- Motor power :1.5kw
- Roller and roller system: high quality materials and advanced processing technology are adopted to ensure the dithering rate of about 15 wires (the roller of ordinary materials is more than 50 wires). The highly equipped winding system makes the fabric winding more smooth and accurate.
- Power supply voltage :380V
Features
- It is suitable for fabric defrosting, printing, garment, dyeing and other textile industries. Unroll the cloth and set it out.
- Frequency conversion control, easy to operate. The unwinding speed is adjustable.
- Swing the cloth, swing adjustable, convenient for the next process operation.
