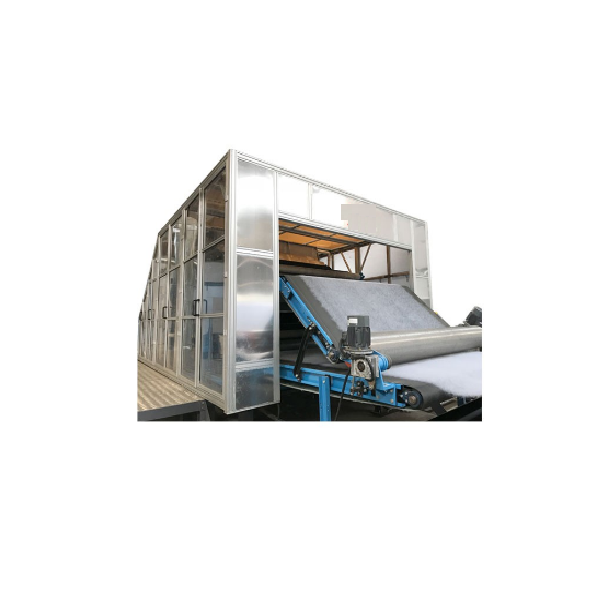

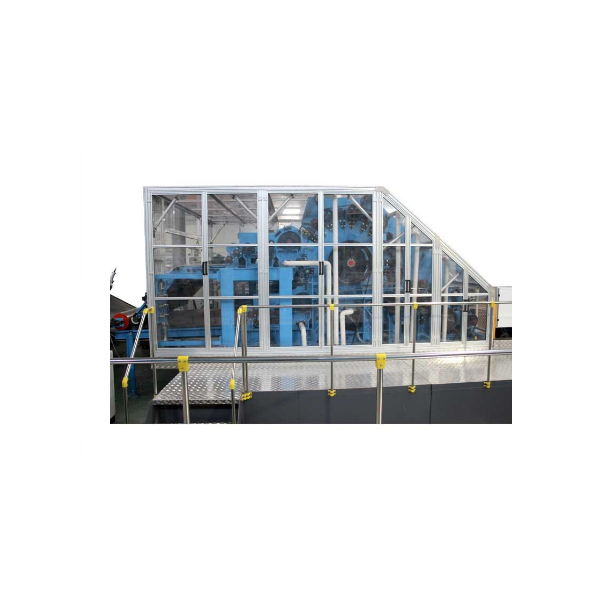

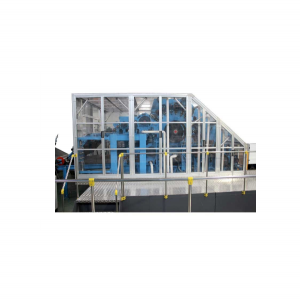

Textile Non- Woven Machines-Carding:

A spinning machine that divides the raw materials into single fibers, forms thin layers of network fibers, and then collects them to form fiber strips. As a result of the type of fiber and different technological requirements, carding machine also has a variety of different structures, such as carding machine, carding machine, carding machine. After carding the fiber strip, many impurities and defects have been eliminated, the fiber of different quality and color get more fully mixed, the fiber is initially straight, and has directional. These are important conditions for the production of high quality yarn. But most of the fiber still has a hook, waiting for the following process straightening.

Specifications

• Working width :2000 mm
• MESH OUT speed: 15-35m/min
• Capacity: 50-180 kg/h
• Power :23.5 kw
• The small drum diameter: Φ 490 mm
• The main oil cylinder diameter: Φ 1230 mm
• Dimensions :4300(L)X2850(W) x1550 (H) mm
• The conveyor belt is made of wood, 2.0m in circumference and 2.0m in width.
• The feeding roller is equipped with a metal detection device, which can realize reverse rotation. It is driven by a 1.5kw motor.
• The cylinder is equipped with a slow start device, calibrated by dynamic and static balance. The c effervescent wave is less than 0.04mm and is driven by an 11kw motor.
• Doffer is calibrated by dynamic and static balance, and is driven by 2.2kw motor with hole c hop ≤ 0.05mm.
• Work roll Φ 165 mm, 87 mm stripping roller Φ random roll Φ 298 mm.

Features

• Feed the upper feeding board, feeding board can be adjusted manually. There is a scale to show the distance, which can reduce the damage of the fiber
• The whole machine synchronous belt drive, improve the transmission accuracy, is the sprocket drive
• Advanced air suction system, equipped with dust bags, to ensure that no cotton on both sides of the wall board fly out
• The net width of cotton is basically the same as the width of equipment, increasing the output by 10%
