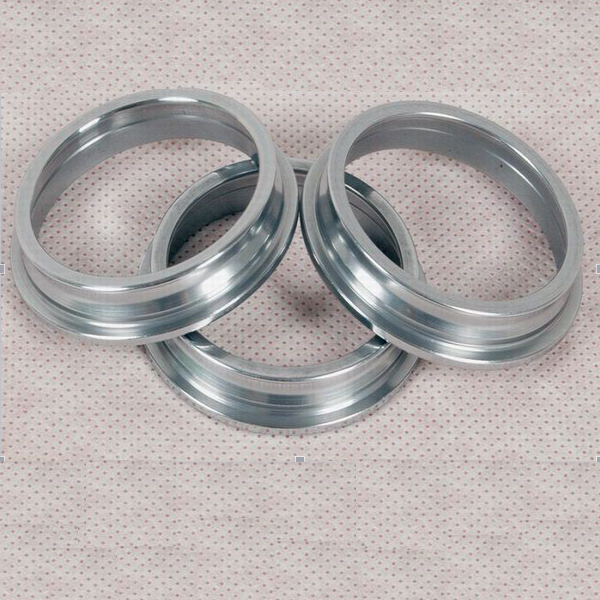

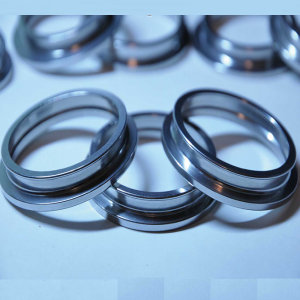

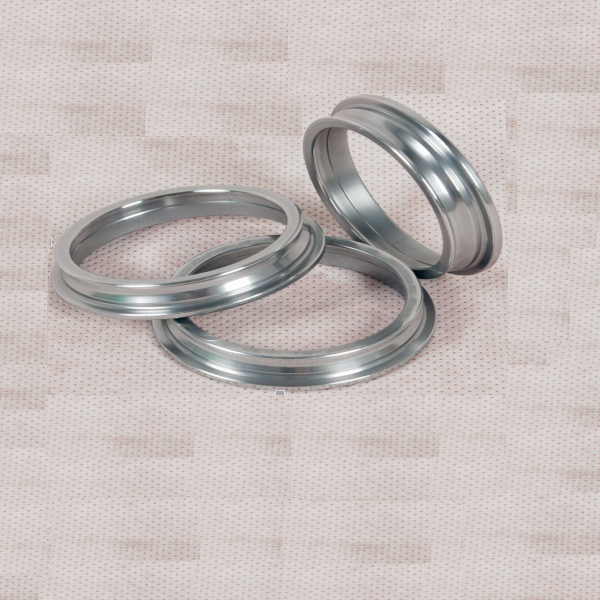

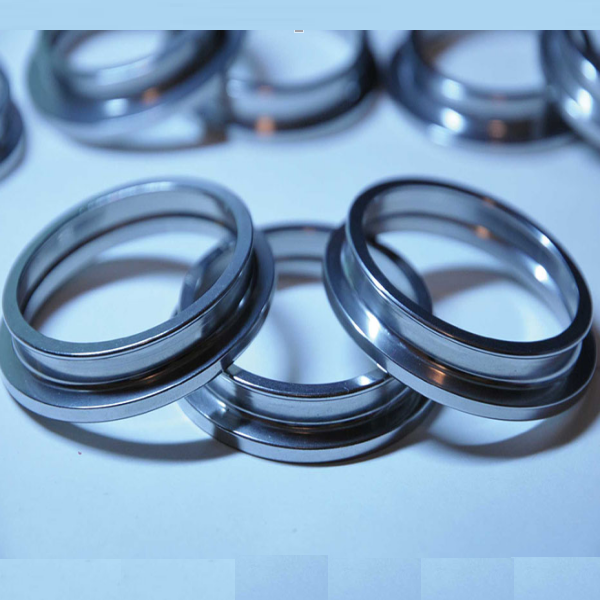

Steel rings for ring spinning frame:

Steel ring is a robot that replaces workers in painting, mining, and smelting. Ring spinning and ring rewinding machine in the role of the ring ring and winding of steel circular machinery. The “ring” of the ring is the steel collar.

Specifications

The steel ring is wound on the raised edge of the ring (also known as the track), and the yarn turns the ring on the track. The steel ring turns once and the yarn is added back. Steel rings are generally made of steel wire bent into a small ring with a gap. When it turns on the steel collar, it slides on the inside of the track because of centrifugal force. The relative speed of the wire ring and the steel collar is very high, because of friction and wear and high temperature (300℃ or more), will make the wire ring fly off, burn or rotary instability. The tension and friction of the yarn during spinning can also cause the ring to deflect and jump. When the traveler end touch neck ring wall, also can cause instant jitter or Xie live. These phenomena can break the yarn. Therefore, the combination of steel collar and wire ring should be able to adapt to high-speed operation and less broken, and easy to use and operate, also requires the new steel collar and new wire ring go mature period short, long service life of steel collar. The main performance of steel collar and ring is usually expressed by the linear speed that can be achieved in normal spinning.

Features

• The steel collar is a steel circular part which plays the role of adding and winding in the spinning process. It plays an extremely important role in the spinning process:
• In the process of spinning, the wire loop of the steel collar is placed on the protruding edge of the steel collar (also known as the track). During spinning, the yarn drives the wire loop to turn on the steel lead track. The ring turns once and the yarn is added back.
• After special surface treatment, the steel collar is easy to be mature when getting on the train, with fewer broken ends, no need for water grinding treatment in the process of use, and long service life.
• Suitable for spinning yarn of various sizes.
