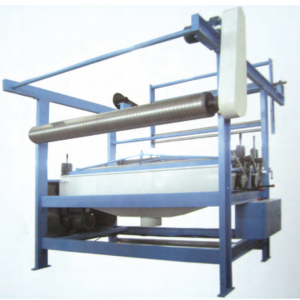

Advantage Of Our Pad Dyeing Machine:
- Dip dyeing solution. The mill is pressurized with compressed air at both ends of the roll, and pressurized with an oil pump inside the roll, so that the pressure on the whole amplitude is the same through adjustment. Not easy to cause the fabric edge and the middle of the deep spot.
- Infrared drying. In the process of infrared drying, the surface and interior of the fabric are heated at the same time, the drying is even, and the dye transfer from the interior to the surface is less.
- Hot air drying. The fabric is pasted on the surface of the metal cylinder heated by steam inside, so that the moisture on the fabric can evaporate and the drying efficiency is high.
- Baking. The fabric is heated up with dry hot air as the heat transfer medium, and the dye diffuses into the fiber and fixates.
- Steam and fix color. The temperature of the fabric is raised by water vapor, the fiber is swollen, and the dye or dye, after acting with the chemical, diffuses into the fiber and the fiber is fixed.
Specifications
- Common nominal width: 1800-3600mm.
- Commonly used guide cloth roller diameter series: 150-300mm.
- Cloth capacity: pre-drying machine: 50-100m baking machine: 70-105m
- Heat source of pre-dryer: steam; Heat source of baking machine: heat conduction oil, electricity, natural gas, etc., temperature automatic control.
- Full machine ac frequency conversion drive, design speed 0-80m/min.
Features
Blankets, towel carpets and other fabrics through the dip dyeing solution, infrared pre-drying, hot air drying, baking (or stretch set), steam solid color and then according to different requirements for washing, soap and other post-treatment, in the process of spinning machine has an important role.
