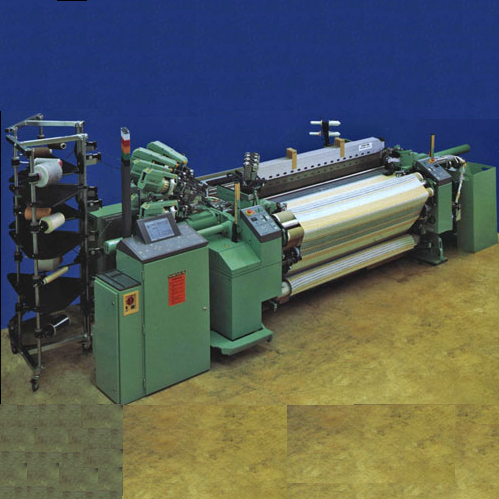

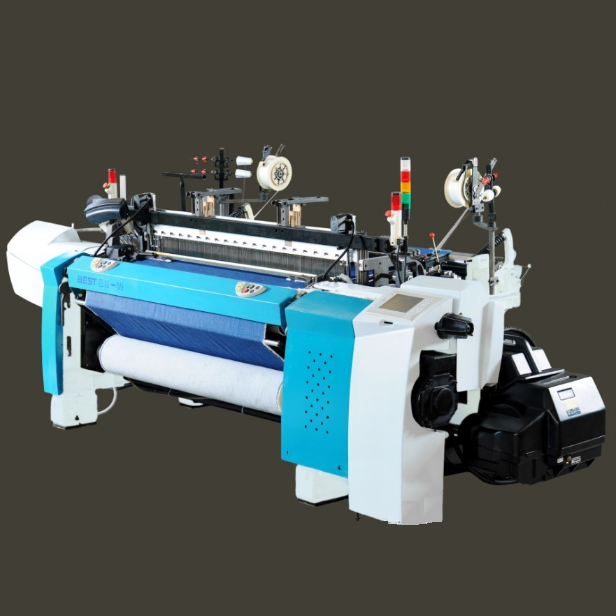

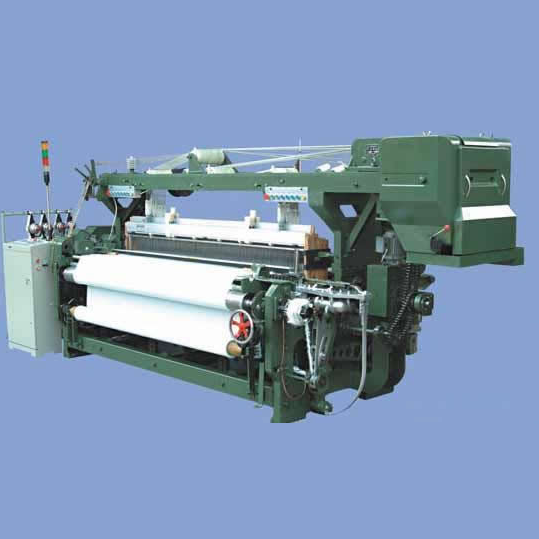

High speed Rapier Looms:

Rapier loom is the most widely used of shuttleless loom, it besides has the shuttleless loom high speed, high degree of automation, highly efficient production, the variety of its positive weft insertion mode have very strong adaptability, can adapt to all kinds of yarn weft insertion, combined with the rapier loom in multicolor weft weaving aspect also has the obvious advantage, can produce as many as 16 color weft yarn dyed products. With shuttle-less loom replacing shuttle loom, rapier loom will become the main production machine of woven fabric.

Specifications

• The twill height of the rear beam is 70mm
• Twill 110 mm to 120 mm Dobby 90 mm to 110 mm
• The height of the stop is 65mm Twill 40 mm   Dobby 30 mm to 40 mm
• Side stay: reed width +60mm, the warp width is 20mm larger than reed width

Features

• Simple maintenance, safe use
• High work efficiency
• Improve spinning quality
