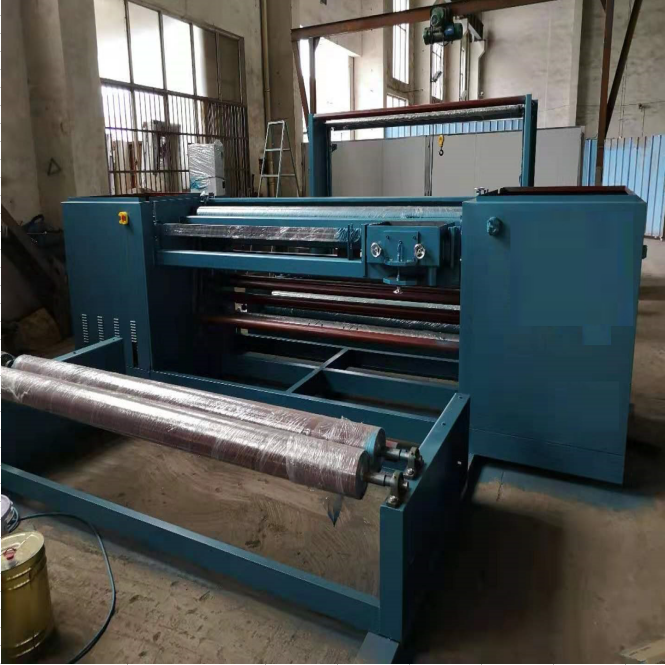

High Quality Vertical Slitting machine:
Third generation advanced new vertical slitting machine,we have basically solved the uneven pile height problem through below creation;exclusive fabric inlet tension control system;segmenting electronic control visual gantry (thickness adjustment frame) operation system to achieve precise control of gantry;Inching stroke is 0.5mm, the deviation value in the minimum range.
Specifications
- Width: 2500 mm （Optional）
- Working speed: 0-20 m/min
- Adjustable slitting thickness: 0-160mm
- Blade linear speed: 0-30 m/s
- Way of fabric outlet: Plaiting/ Rolling (Optional)
- Overall dimension (L*W*H): 6300mm*4800mm*2060mm (2500 mm width)
- Slitting blade size: 10000×0.8×80 (2500mm width)
- Grinding stone size：100×50×16 （Emery stone)
- Power and voltage: 9 KW, 380V
- Machine weight: ≥4300 kg (2500 mm width)
Features
Easy to learn and operate; Convenient to change blade; After slitting, fabric surface looks good; Pile of both side very even.
