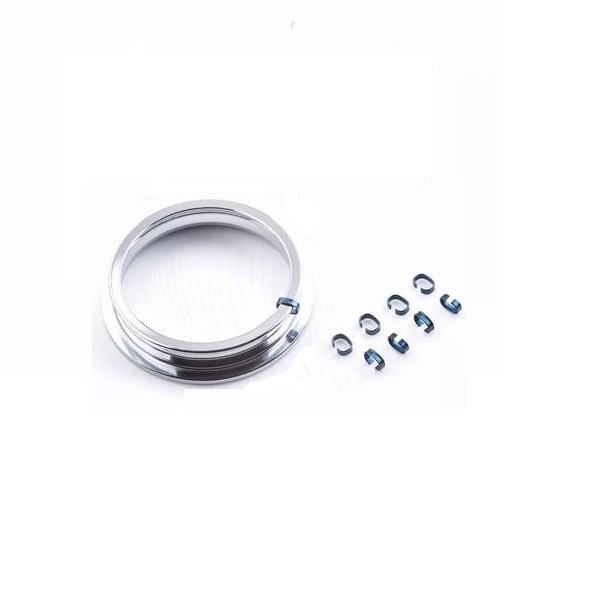

High Quality Ring travellers
The ring travellers wire trap is on the protruding edge of the steel collar (also known as the track). When spinning, the yarn moves the wire loop around the steel lead path. When the loop is turned once, the yarn is added back. Steel ring is generally made of steel wire into a small ring with a gap. When it turns on the steel collar, it slides on the inside of the steel collar runway due to the action of centrifugal force. The relative speed of steel ring and steel collar is very high, because of friction and wear and high temperature (above 300℃), will make the ring fly off, burn or rotation instability. The tension and friction of the yarns during spinning can also cause skewing and jumping of the wires. When the traveler end touch neck ring wall, also can cause instant jitter or Xie live. All these phenomena will cause the yarn to break. Therefore, it is required that the combination of steel collar and steel ring should be able to adapt to high speed operation and less broken ends, and the operation is convenient, but also requires that the new steel collar and new steel ring ripeness period is short, the service life of steel collar is long. The main operating performance of steel collar and wire ring is usually expressed by the linear speed that can be achieved during normal spinning.

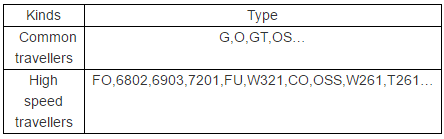

Specifications
Features
- It endows with strong tenacity.Its shape is not easy to be transformed .It can always preserve optimal matching effects for steel ring.
- It Obviously improve the quality of yarn and heighten efficiency of spinning.
- It service- life is two to three times than that of normal traveller,
- if it further treated by special coating,its service-life will be more longer.
