Advantage Of Our High Quality Feeding:

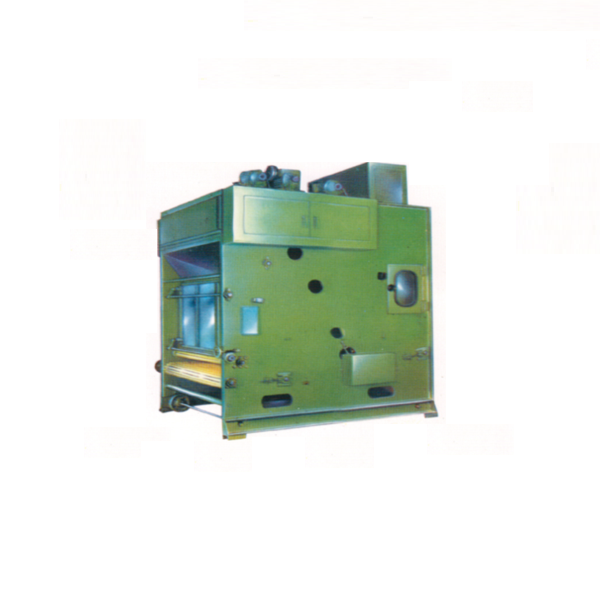

The machine adopts stepless speed regulation, photoelectric control, cotton feeding
It has the characteristics of high vibration precision and good uniformity. It is by storehouse, nail case, homogenization roll, separation roll, vibration plate, transmission mechanism and so on composition. Suitable for all kinds of chemical fiber transp
Specifications
- WORKING WIDTH: 1820mm
- CAPACITY: 80~200 KG/H
- FREQUENCY: 120~160 TIMES/MIN
- POWER: 3.75KW
- DIMENSION: 2000(L)X2200(W)X2315(H) mm
- THE SPIKED LATTICE IS MADE OF WOOD, WHICH IS DRIVEN BY 1.5KW MOTOR, 3.5M
- GIRTH AND 1.8M WIDTH.
- EVENER ROLLER IS ф300mm ( DIAMETER), WITH 45# STEEL CORE AXIS AND CAST RING FLANGES, AND ROTATION SPEED IS 350rpm.
- THE DETACHING ROLLER IS SAME AS EVENER ROLLER. BOTH OF THE TWO KINDS OF ROLLERS ARE DRIVEN BY 1.1W MOTOR.
- THE VIBRATING PLATE IS DRIVEN BY ECCENTRIC OSCILLATING BEAM, VIBRATING AMPLITUDE 20mm(ECCENTRICITY 10mm), WHICH IS DRIVEN BY 0.75 KW MOTOR.
- THE COTTON STORAGE BOX IS EQUIPPED WITH OPTICAL GRATING, WHO’S HEIGHT-ADJUSTABLE FOR 30CM
Features
The unwound fibers were further loosely mixed and treated to uniform cotton for use in the next process according to a relatively uniform ration. Vertical feeding is used to avoid the problems of unbalanced grasping of fiber and falling off of steel needle. The cotton input is controlled by photoelectric, so that the density is even and the cotton content is stable. The volumetric feeding mechanism is adopted to achieve the goal of uniform and continuous feeding. Cotton roller, roller by motor constant speed drive
