Advantage Of  Our High Quality Drop Wire:

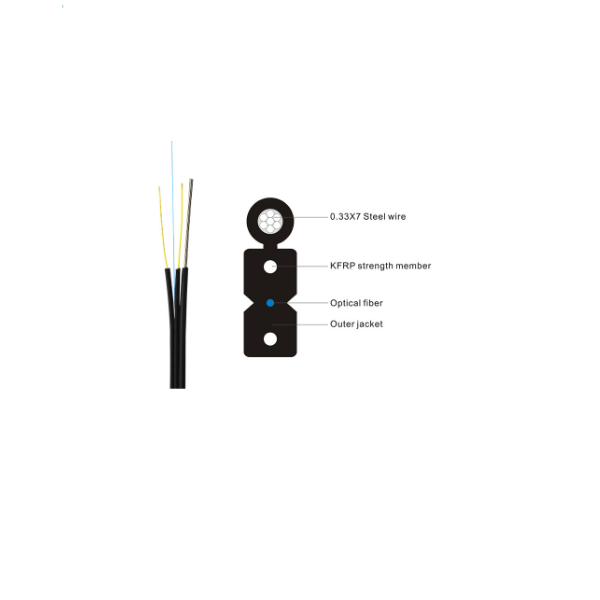

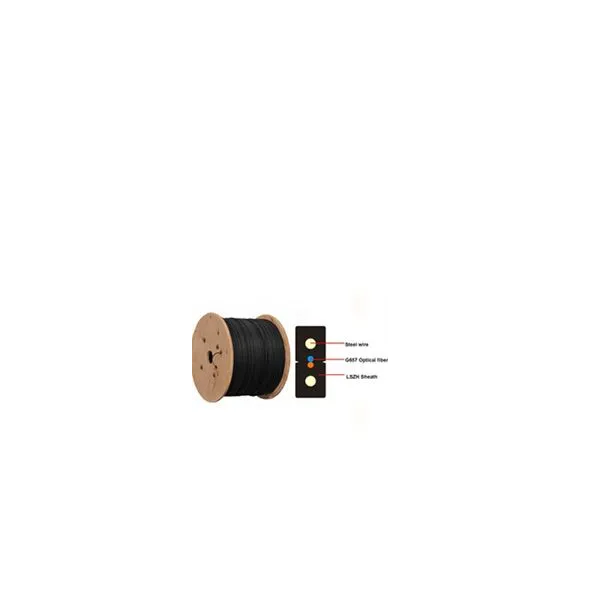

The  drop cable is positioned in the centre. Two parrallel fiber reinforced plastics(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color PVC/LSZH sheath. The typical self-supporting bow-type drop fiber optic cable consists of GJXFH/GJXH cable and an additional strength member (steel wire or stranded steel wire).

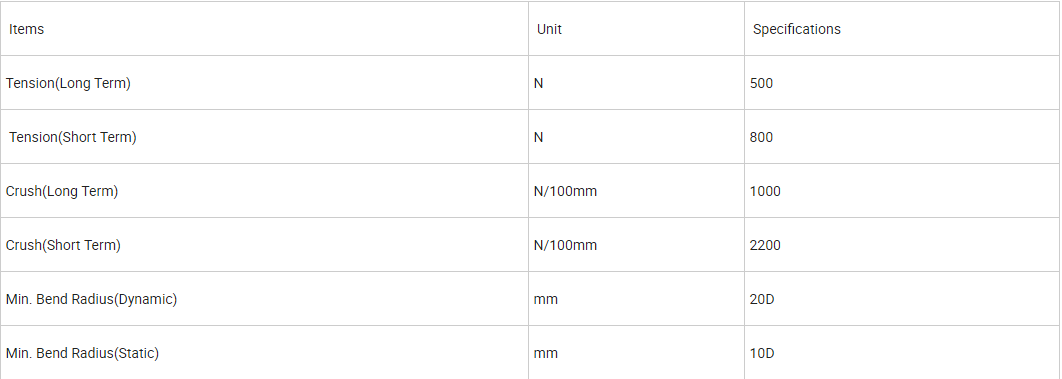

Specifications

Features

1.Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2.Two parallel FRP/ steel strength members ensure good performance of crush resistance to protect the fiber.
3. Novel groove design, easily strips and splice, simplified installation and maintenance, higher tensile strength.
4. Single Steel wire as the additional strength member ensures good performance of tensile strength.
5. Simple structure-light weight and high practicability.
