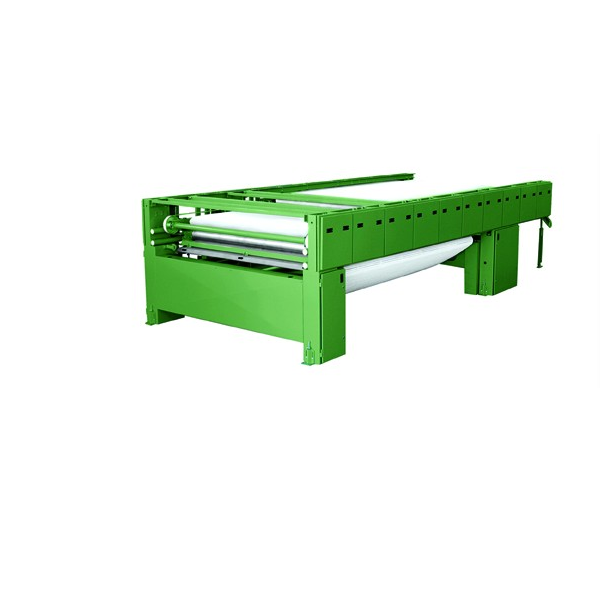

Advantage Of Our High Quality Cross Lapper:
In order to make the horizontal evenness of the fiber network after acupuncture in the best state, 9 fiber sensors are evenly placed on the width direction of the output end of the acupuncture machine to detect the evenness of the fiber network at these 9 points at all times, and the measured values are transmitted to the upper computer for processing. Upper machine fitting method for interpolation according to the received value, and it is concluded that the fitting curve display on the interface, PC will spread net car after further operations should be changes in the speed of the nine point values transmitted to the next bit machine PLC, controlled by the PLC frequency conversion motor speed, ultimately control the speed of the car web, or adjust the thickness of the web.
Specifications
- Input web width: 1500-2500mm
- Output web width: 1700-6500mm
- Input web speed: 50m/min(max)
- Application of carbon fabric transport belts
- Optional frequency inverter control system or advanced servo control system
- Five powerful motors controlling each component’s movement;
- Manual or electrical output apron height adjustment
- Installed Power:22.2KW
Features
- Shorten the channel distance between the carding machine and the cross lapper net laying point of the auxiliary mesh machine to reduce the tension of the fiber net.
- Driven by multiple servo motors and controlled by computer, all moving parts and positions can be controlled more accurately. Avoid collision and vibration of components, reduce the changeover time of the trolley, use the mesh laying machine trolley to store a certain length of fiber net, adjust the length of fiber net output in different positions, make the fiber net underfed when the edge net is laid, and release the storage of fiber net to make it overfed. In order to ensure the horizontal evenness of the consolidated fiber net in the best state, this technology is the fiber net cross section shaping.
