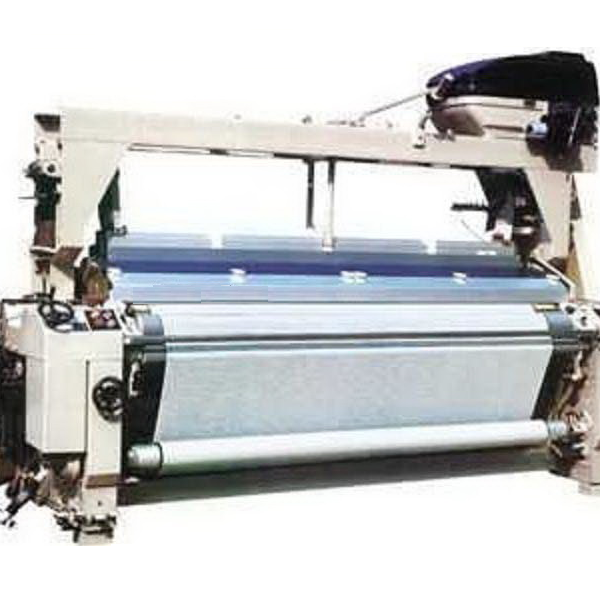

High Efficiency Water-Jet Looms

Short Description:

High Efficiency Water-Jet Looms: Water jet loom is a shuttle-less loom which uses jet water column to pull the weft yarn through the shed. The friction traction of weft insertion by water jet is larger than that by air jet, and the diffusivity is smaller. At the same time, the electrical conductivity of the synthetic fiber can be increased, and the static electricity in weaving can be effectively overcome. In addition, spraying weft consumes less energy and has the lowest noise. Specification...

FOB Price: Variable

Min.Order Quantity: 100 Units

Supply Ability: 10000 Units per Month

Payment Terms: L/C,D/P,D/A,T/T

Main Port: Shanghai,Ningbo,ShenZhen,TianJin

Send email to us Download as PDF

Product Detail

Product Tags

High Efficiency Water-Jet Looms:

Water jet loom is a shuttle-less loom which uses jet water column to pull the weft yarn through the shed. The friction traction of weft insertion by water jet is larger than that by air jet, and the diffusivity is smaller. At the same time, the electrical conductivity of the synthetic fiber can be increased, and the static electricity in weaving can be effectively overcome. In addition, spraying weft consumes less energy and has the lowest noise.

Specifications

Due to its simple weft insertion system and high strength of warp yarn, the water-jet loom has a high speed and high requirements on the main drive motor: high starting torque and reverse torque of rapid braking, and frequent starting shock current caused by frequent forward and backward inching should be considered. Due to the unique working environment (high humidity in the working environment), the motor is put forward with high insulation performance and sealing. The motor of the water-jet loom must have a high starting torque to meet the initial weft force of the loom and avoid fabric weft defects.
